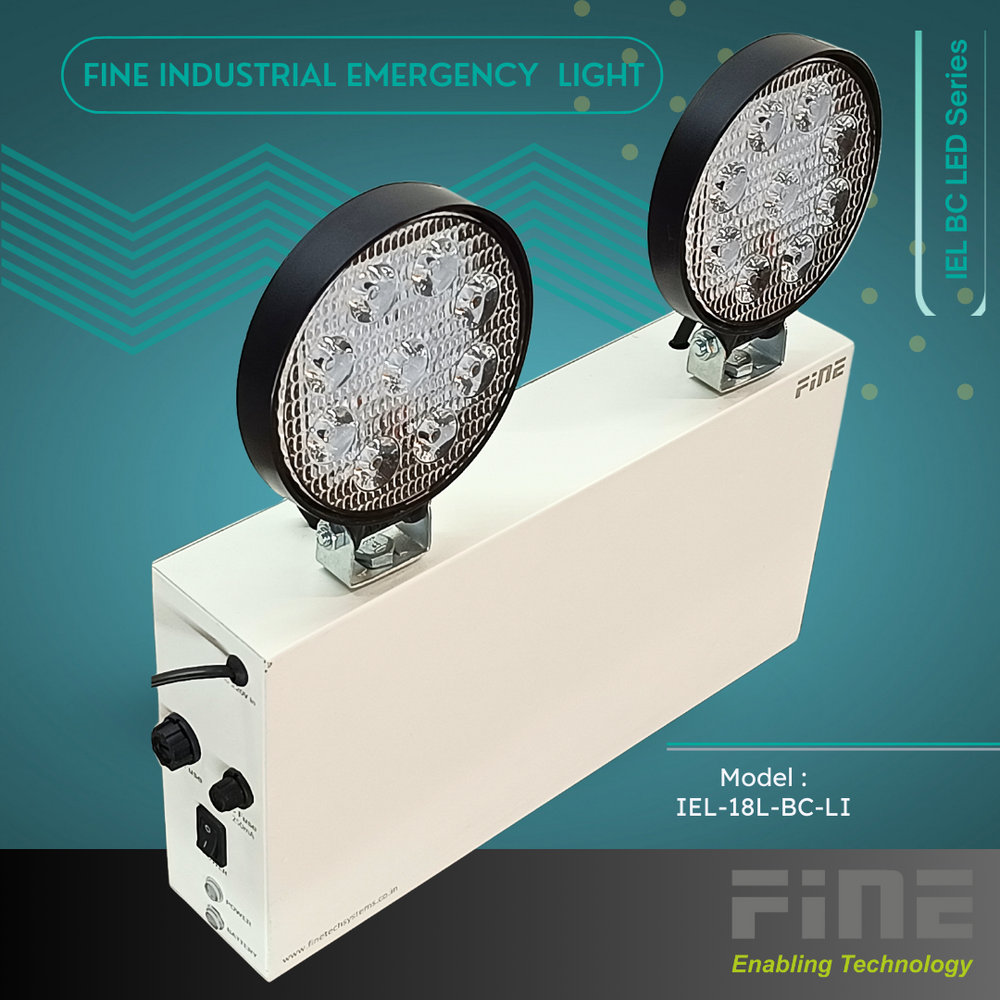

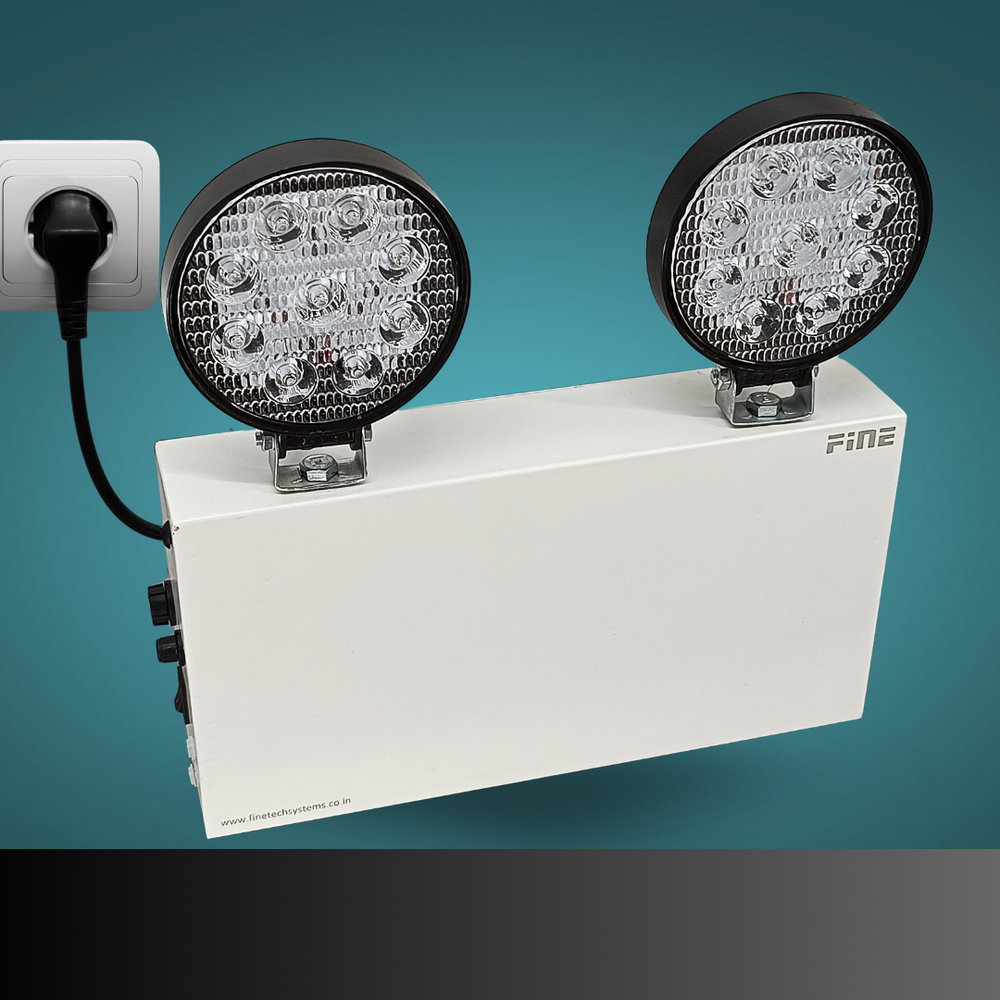

INDUSTRIAL EMERGENCY LIGHT WITH EMERGENCY EXIT SIGN

INDUSTRIAL EMERGENCY LIGHT WITH EMERGENCY EXIT SIGN
INDUSTRIAL EMERGENCY LIGHT WITH EMERGENCY EXIT SIGN
Send Inquiry
Product Code : IEL EEH 110
Brand Name : FINE
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece/Pieces
  • Price
  • RS.4264/Piece INR
Product Description

Product Details:

Minimum Order Quantity

1 Piece

LED display- RED or GREEN

Red-780 to 622 nm - Green-577 to 492 nm

Fuse Protections

1A,230V AC Fuse & 15A ,12V DC fuse

Operating Temperature

10 to 30 degree ambient temperature

Is Dimmable

Yes, Dim/Bright option is provided

Switches Provided

Power, Lamp 1, Lamp 2,Sensor, Dim/Bright,EXIT

LED indications

Mains in, Sensor& Battery

Sensor Provided

Day/Night sensor (LDR) protects lighting when day time

LED Signage Viewing angle

165 degree

Regular Packing Materials

Double wall corrugated box with poly bags

Operation

Auto lights up while power failure

Light up time when power fails

Less than 1 seconds

LED driver

Constant current switching LED driver

Cyclic life of battery

250 to 300 cycles

Warranty

One Year

Model

IEEE55H

Battery Protection

Over Charge & Over Discharge

Battery

12V,7AH VRLA Inbuilt

Body Material

Fabricated Sheet Metal ( powder coated)colour -Half white

Power source

AC 220V,50Hz and Battery

Light source

55WX2nos - Halogen Bulbs

LED Display

Multiple 5mm LED

LED Display power

Power 1W app

AC Isolation

Iron core Transformer

Battery Operating volt

11V to 14V

Battery Charger

Regulated constant volt & constant current

Battery Charging Time

7 To 8 Hrs app

Power Consumption

Negligible (while stand by )

Led display visible distance : 200 feets

Halogen spot beam length : 200 feets

Operating volt

175V - 260V AC ,50HZ

LED Display Diffuser

Red/ Green acrylic transparent

Is focus lamp tiltable

Yes, Top to Bottom 60 degree & Left/Right 270 degree

LED signage

EMERGENCY EXIT

Mains In

2 pin mains cord (1 meter length )

IP Rating

IP33

Lighting Color

Cool White, Warm White

Power

AC 220V,50Hz, Power consumption : 10W (app).



Specifications:

Brand Name : FINE

Usage : Emergency Illumination

Warranty : 1 Year

Model : IEEE55H

Battery : 12V,7AH VRLA Inbuilt

Body Material : Fabricated Sheet Metal (Powder Coated) Colour - Half white

Power Source : AC 220v,50Hz(+/15%) and Battery

Light Source : 55W x 2 nos – Halogen Bulbs

Is Dimmable: yes, Dim/Bright option is provided

Battery Protections: * Over charge * Over discharge

LED display : multiple 5 mm LED

LED display : power 1W (app)

Battery operating volts: 11V to 14V

Battery charger : Regulated constant volt &constant current

Battery charging Time : 7 to 8 Hrs (app)

Power consumption : 10W(app) while charging

Power consumption : Negligible (While stand by)

LED Driver : Constant current switching LED driver

AC isolation : Iron core transformer

Operating volt : 175V-260V AC,50H

LED display diffuser : Red/ Green acrylic transparent

Is focus laps tilt able : Yes-Top/Bottom 60 degree Left/Right 270 degree

Installation : Hanging

LED signage : EMERGENCY EXIT

Mains In : 2 pin mains cord (1 meter length )

Fuse protections : 1A,230V AC fuse 15A, 12V DC fuse

Is Handles provided :

Oprating : temperature : 10 to 30 degree ambient temperature

Switches provided : 1)power 2)sensor 3)lamp1 4)lamp2 5)Dim/Bright 6)EXIT

LED indications : 1) Mains in 2) Battery

Sensors provided : Day/Night sensor (LDR) protects lighting when day time

Lightning Duration : Mode 1 lamp 2 lamp Dim 3Hrs 2Hrs Bright 1Hrs 20min

LED display duration: Same as halogen light (or) 72 Hours when halogen lights of position

Product overall dimensions: Length=355mm Width=90mm Height=287mm

Product overall weight:
Net : 5.350 Kgs
Gross : 5.650 Kgs

Regular packing materials: Double wall corrugated box with poly bags

Operation : Auto lights up while power failure

Light up time when power fails : Less than 1 seconds

Cyclic life of Battery: 250 to 300 cycles

Remote operation: N


Caution
:

  • Over temperature,over vibration may affect device life span

  • Never disconnect input power after installed

  • Take care of battery polarity while trouble shooting

  • Don't discharge the battery daily.

Installation:

  • Device must be installed with better ventilation

  • Keep power supply within normal range (AC 175-260V,50Hz)

  • Installation must be away from chemical substance, gas or exhaust pipes

  • Prevent direct sunlight on the device

  • Install the AC input plugs without dry or loose connection.

Product Code: Industrial Emergency Light Wi

Additional Information:

  • Pay Mode Terms: T/T (Bank Transfer)

  • Port of Dispatch: Chennai

  • Production Capacity: 2500 PER Month

  • Delivery Time: Ex Stock or 10 Days

  • Packaging Details: Packing : One Unit Per Carton

    • Carton : Double Wall Corrugated
    • Dimensions (cm) : 38.1 x 10.16 x 29.21
    • Weight :5.350(net) / 5.650 (gross)
